Concealed Duct Mini Split

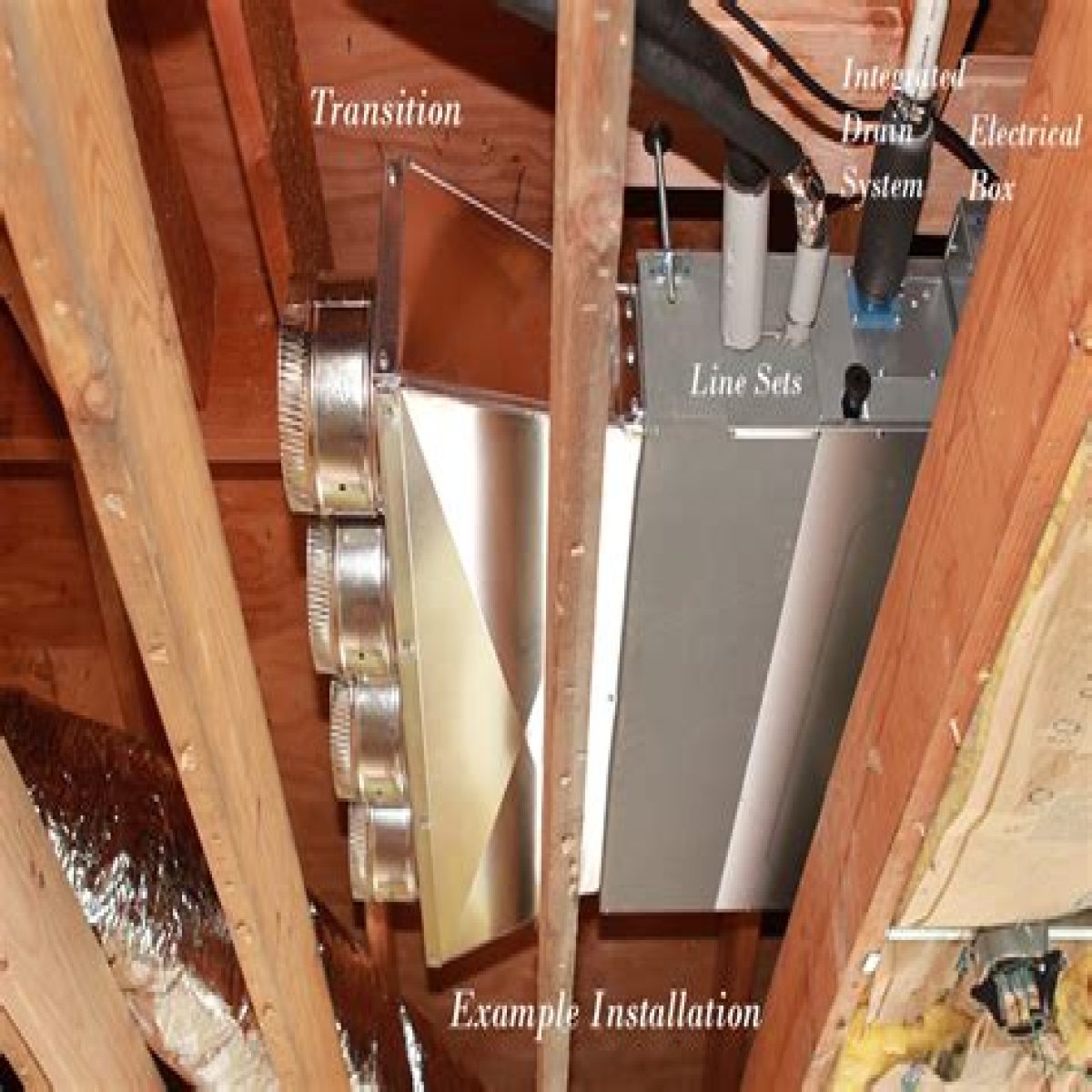

Pioneer® Ducted Concealed mini split systems offer climate control for multiple rooms and areas, utilizing a network of air ducts (existing or field designed) using a single set of equipment.
Can you put ductwork in attic?
When HVAC ducts are installed in a vented attic in a dry climate, bury the ducts in attic insulation to protect them from temperature extremes in the unconditioned attic space. Install ductwork so that it is in direct contact with (i.e., laying on) the ceiling and/or truss lower cords.
Do ducted mini splits need return air?
Ductless mini split systems are not designed to circulate air around large spaces, but rather to blow cool air into a room. A ductless system just continues to blow out cool air (or warm air during winter), without any return system.
Can I install a mini split myself?
Mini split systems are easy to install and are perfect for DIYers. You’ll save money by not hiring a contractor and you can complete the installation on your own timetable. Ductless mini split systems are easier to install than other air conditioning systems.
How high can you mount a mini split?
Mini split systems are ideal for average-sized rooms with at least 7′- 8′ high ceilings. They need to be mounted high on the wall (approximately 6 feet high). Mounting too low can hamper air distribution.
Are ducted mini splits worth it?
However, according to manufacturers, ducted mini splits should be considered as they can increase energy efficiency while taking advantage of a home’s infrastructure. “In addition, all traditional ducts leak conditioned air to some extent, which reduces energy efficiency and increases utility costs.
Can a split system be ducted?
However, the need to have the exterior unit relatively proximate to the head units will affect whether this is a suitable solution for your property. Nevertheless, a multi-headed split system may be a viable option where a ducted system is not feasible due to limited space for ducting.
Does a mini split have to be on an exterior wall?
Ductless mini split systems are not exclusively outdoors, nor are they exclusively indoors, either. As part of a system, the compressor of the mini split goes outside. As your mini split installation team sets up the indoor units, there’s no need to attach nor vent the mini splits through any exterior walls.
Is it better to have ductwork in attic or crawl space?
Ductwork in the conditioned space is far more efficient. Research has shown that ductwork installed in unconditioned attics or crawl spaces can waste 20% of the system’s energy output.
How do you install ductwork in an attic?
Hold the loose end of a roll of duct support webbing against the side of a roof joist sitting directly above the flex duct. Adjust the end of the webbing until it sits at least 1 1/2 inches above the bottom edge of the joist and the rest of the roll hangs down toward the attic floor.
Should ductwork in attic be insulated?
Insulate the heck out of the ducts and air handler
Attics get really hot. Insulation helps reduce heat flow. But buried ducts in a humid climate are at risk for condensation. The building code now allows it, but only with R-13 on the ducts before you bury them in IECC climate zones 1A, 2A, and 3A.
Does a mini split pull air from outside?
While ductless mini splits offer quiet, efficient, and comfortable cooling and heating, they don’t bring in fresh air from outside. Like conventional HVAC systems, they circulate the air that’s already inside your home.
Do mini splits produce carbon monoxide?
Gas-burning HVAC units are always at risk of causing Carbon Monoxide poisoning. Thousands of families are affected in our country every year. A ductless mini-split doesn’t burn any fuel to create heat. Therefore, no gas or oil can potentially cause CO poisoning from your ductless mini-split.
How far will a mini split throw air?
Sizing and Location of the Mini Split to the room is still EXTREMELY IMPORTANT. Room for most applications inside the house. The throw of the 9 or 12,000 Btu/h units is approximately 15 feet, and the 18 or 24,000 Btu/h units have a throw of approximately 25 feet.
How much should it cost to install a mini split?
The average cost for ductless mini split air conditioning installation costs between $1,700 to $8,500. To heat or cool an average living room alone with a square footage of 350 square feet, a 12,000 BTU ductless AC unit with a 21 SEER rating would end up costing around $3,500 for the unit + installation costs.
How much does it cost to have a mini split?
The cost range to install a ductless system is from $5,000 to $28,000 with $12,348 being the average cost. Ductless air conditioners (also known as mini-splits) give homeowners considerable control over the temperature of their home’s individual rooms and can slash a home’s annual cooling costs by up to 50%.
Do you need a professional to install a mini split?
Most ductless mini split systems are installed by a professional because the refrigerant line must be cut and then charged. DIY mini splits come with the refrigerant line already charged and do not require a professional to charge them.
